PU Timing Belt

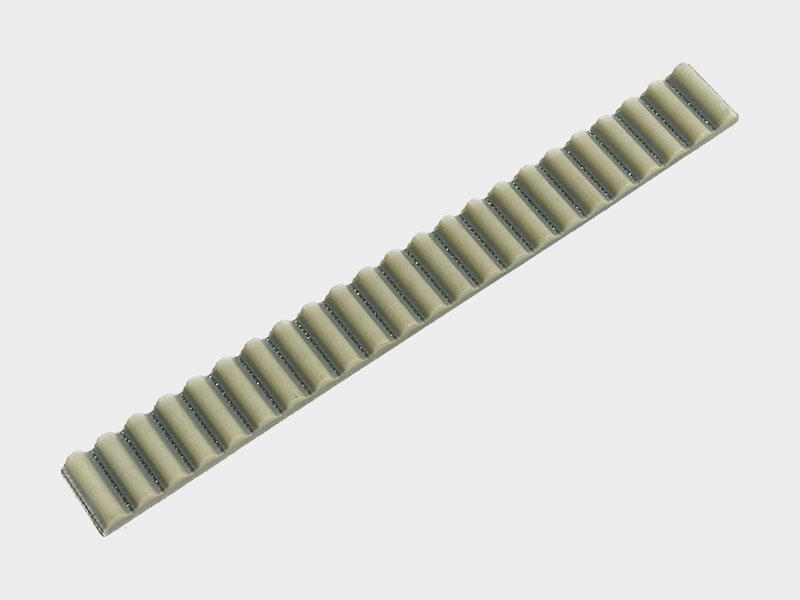

STD 8M

Characteristics:
1.High torque steel wire core polyurethane synchronous belt with semi-circular arc teeth
2.Tooth profile in accordance with ISO 13050
3.Metric pitch 8mm
4.Low noise at high speeds
5.Excellent reliability in linear positioning,medium duty power transmission applications Widely used in automatic doors
6.Special tooth profile for smooth running effect

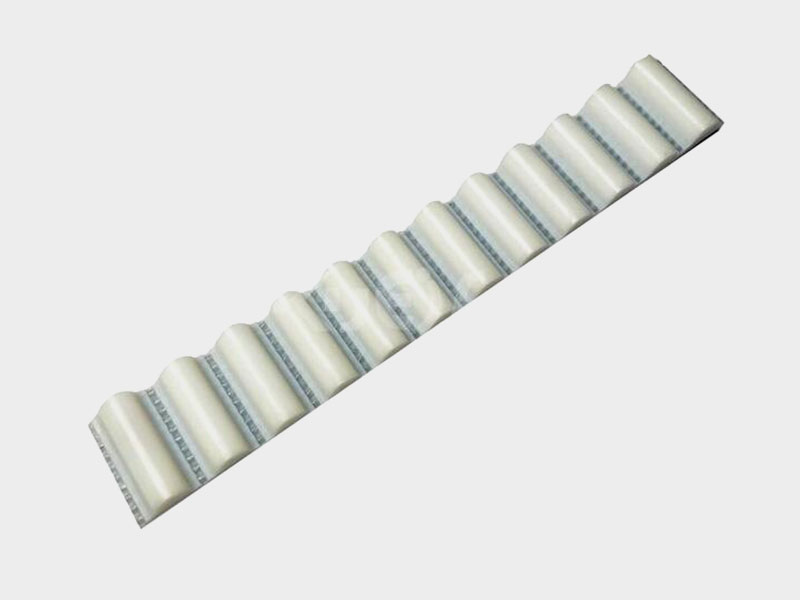

STD 14M

Characteristics:
1.High torque steel wire core polyurethane synchronous belt with semi-circular arc teeth
2.Tooth profile in accordance with ISO 13050
3.Metric pitch 14mm
4.Low noise at high speeds
5.Reduced elongation due to increased tensile loading of the synchronous belt core
6.Excellent performance in lifting applications
7.Special tooth profile for smooth running effect

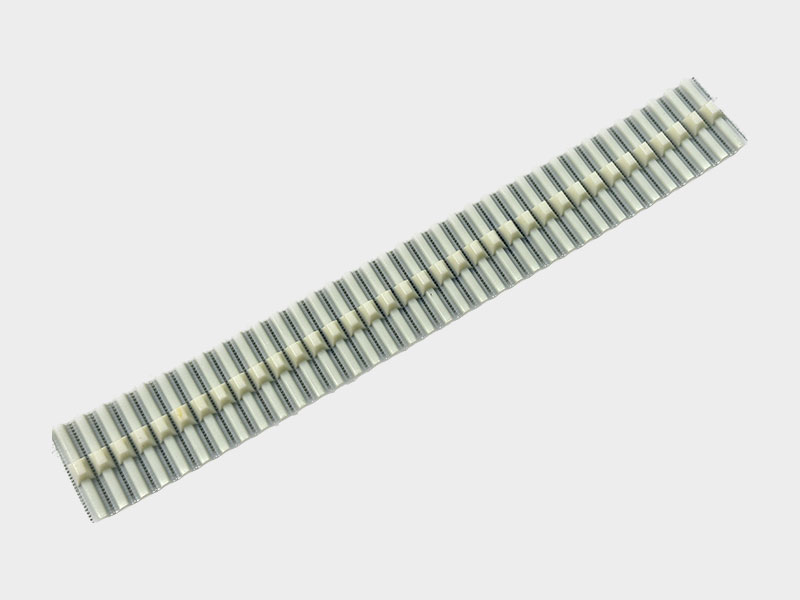

TK5 K6

Characteristics:
1.Self-tracking steel wire core polyurethane synchronous belts
2.Tooth shape in accordance with ISO 17396
3.Centering guide size-K6 x 4mm
4.Pulleys can be used without flanges
5.Centering guide and pulley grooves maximize belt flexibility
6.Ideal for conveyor applications where lateral loads are easily produced.

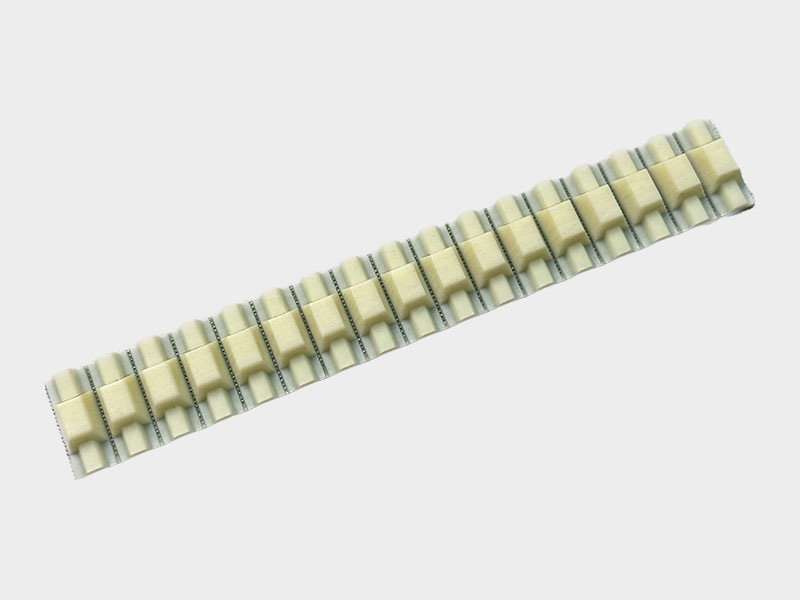

TK10 K13-K6

Characteristics:
1.Self-tracking steel wire core polyurethane synchronous belts
2.Tooth shape in accordance with ISO 17396
3.Center guide size-K13×6.5mm
4.Center guide size-K6X4.0mm
5.Belt pulley can be used without flanging
6.Centering guide and pulley grooves maximize belt flexibility.
7.Ideal for conveyor applications where lateral loads are easily produced.

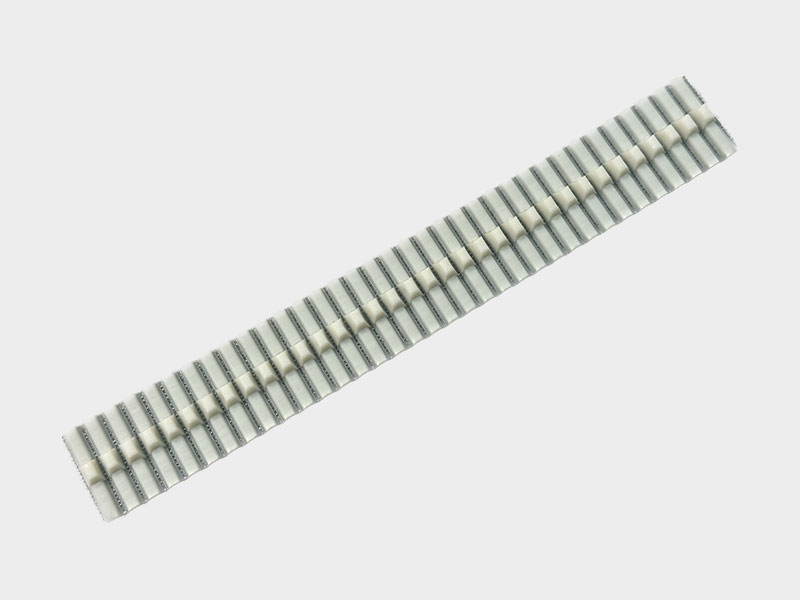

ATK5K6

Characteristics:
1.Self-tracking steel wire core polyurethane synchronous belts
2.Tooth shape in accordance with ISO 17396
3.Centering guide size-K6 x 4mm
4.Pulleys can be used without flanges
5.Centering guide and pulley grooves maximize belt flexibility
6.Ideal for conveyor applications where lateral loads are easily produced.

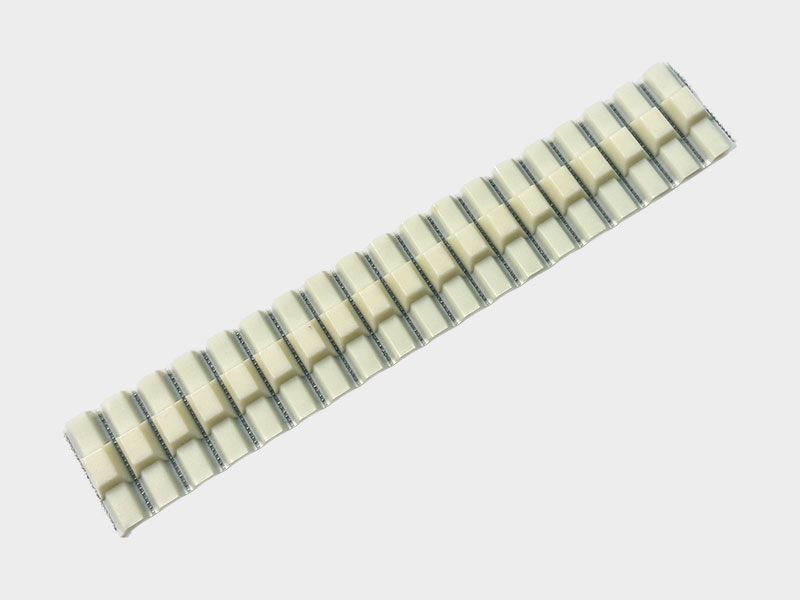

ATK10 K13-K6

Characteristics:
1.Self-tracking steel wire core polyurethane synchronous belts
2.Tooth shape in accordance with ISO 17396
3.Center guide size-K13×6.5mm
4.Center guide size-K6X4.0mm
5.Belt pulley can be used without flanging
6.Centering guide and pulley grooves maximize belt flexibility.
7.Ideal for conveyor applications where lateral loads are easily produced.
